1/3
irrigation boom
$ 4000.00 ~ $ 10000.00/
1/
(Min. Order)
Quick Details
OEM:
Refuse
Sample:
Available
Payment:
T/T
Place of Origin:
China
Supply Ability:
1000 piece per month
Quick Details
OK
Shipping fee
Shipping fee
Inquiry Basket
Contact Supplier
Quick Details

Usage: Agriculture
Applicable Industries: Farms
Showroom Location: None
Machinery Test Report: Provided
Warranty of core components: 1 Year
Condition: New
Brand Name: Huayuan
Feature: save energy and easy for install
After-sales Service Provided:
Video technical support, Online support
Key Selling Points: easy operation
Type: IRRIGATION SYSTEM
Local Service Location: None
Video outgoing-inspection: Provided
Marketing Type: Ordinary Product
Core Components: Gearbox
Place of Origin: Jiangsu, China
Material: metal
Diameter: 7.5 cm
Warranty: 1 Year



Supply Ability
Supply Ability 1000 Set/Sets per Month


Packaging & Delivery
Packaging Details
1. Normal packing
2. As per customer's request
Port shanghai
Lead Time:
Quantity(Sets)    1 - 1    >1
Est. Time(days)    16    To be negotiated



Products Description

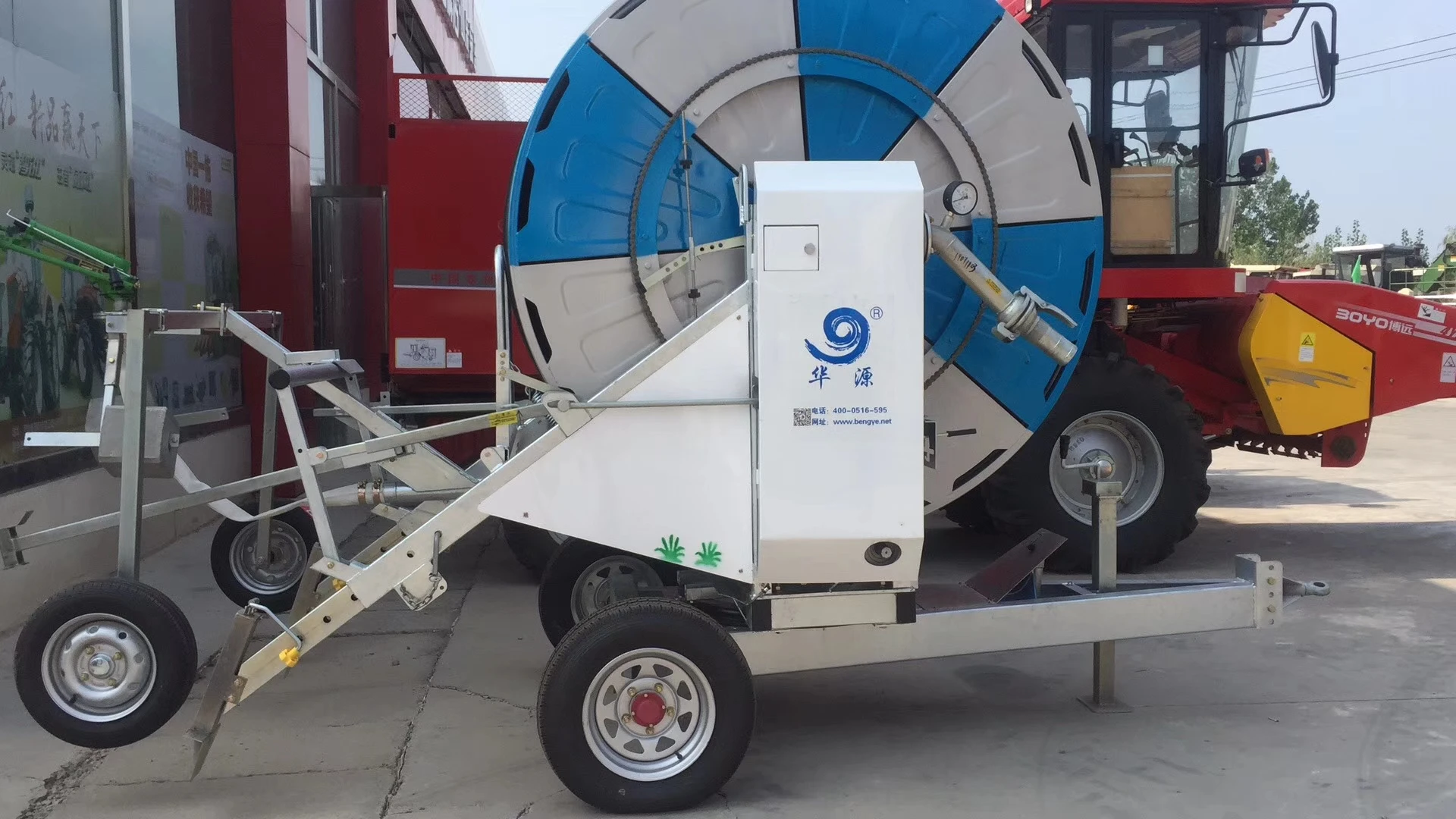

Central Pivot Hose Reel Misting Boom Irrigation Machine
JP hose reel irrigation machine
Details Images



Advantages: Small-investment,
Easy-maintenance,
Excellent Cost efficiency.



Drive Mode:
Water turbine driven,
Electrictiy driven


Central Pivot Hose Reel Misting Boom Irrigation Machine



Spraying Mode:
Single-sprinkler,
Double-sprinkler,
Truss irrigation.
Central Pivot Hose Reel Misting Boom Irrigation Machine
Product Paramenters
Series Model
JP25,JP32,JP40,JP50,JP65, JP75 ,JP90, JP110,JP125Y
Pipe dia(mm)
50-150
PE Pipe Length(m)
150-250
Into the machine pressure(MPa)
0.35-0.78
Nozzle Pressure(MPa)
0.2-0.4
Nozzle Diameter(mm)
9-16
Flow Rate(m/h)
5-19.7
Range(m)
19-30
Spray Width
32-51
Combination Uniformity Coefficient(%)
≥85
Interlayer Velocity Difference(%)
<20
Precipitation(mm)
6-44
nozzle Type
PYK40
Nozzle Car Track(mm)
1000-1800
Nozzle Height(mm)
600
Car Climbing(%)
20
Traction Height(mm)
300
Ground Clearance(mm)
300
Chassis
145-12
Wheel Tire Rim Maximum Width(mm)
1580



Introduction:

The series of hose reel sprinklers can irrigate large farmland.
They can easily control the flows of water based on the amount of sprinkled water.
In order to meet the different requirements of sprinkling irrigation, so it is the best choice for farmland water saving
undertaking.
At the same time, it is also suitable for spraying in power plants, ports, sports grounds, urban green space and other situations
where irrigation and dust proof are needed.
Appication Fields:
1. Large, Medium and small farmland crop irrigation;
2. Gardens,
3. Urban green space,
4. Fruit and vegetable farm,
5. Tea farm meadow land,
6. Sugar canes farm,
7. Power plants,
8. Docks and port service,
9. Construction sites,
10. Coal mine dusts - removal projectsand other fields.


Company Introduction
farm water irrigation sprinkler system for agriculture

Jiangsu Huayuan Water-Saving Co.,Ltd

Jiangsu huayuan water-saving co.,ltd was established in November 2007.lt was stared construction and put into operation 2008.After years of development,the company products cover large sprinkler machine,JP series hose reel machine,CP series moving-sprinkler machine,miro-sprinkler,drip irrigation,series of submersible pump,series of polyethylene(PE) pipe,etc.In March 2016,the company was listedon the new third board(stock code:836024)

The company owns a number of subsidiaries and branch companies,is a national high-tech enterprises,private technology enterprises in jiangsu province.The company take the science and technology achievements transformation projects of jiangsu province,credit management enterprise of jiangsu province.Company owns more than 70 patents,take a number of national research and development projects of the thirteenth Five-Year-Plan,science and technology support projects for agriculture of jiangsu province.The company drafted the industry standard of the hose reel machine.The company is the base of national pump and system engineering technology research center,modern agricultural water-saving irrigation equipment engineering technology research center of jiangsu province.The company has passed the certification of quality management system,certification of environmental management system,certification of occupational health and safety management system.A number of products have been identified as high-tech products,famous brand of jiangsu province.The company cooperate with the first-class domestic colleges and university,established the "factory-university-research center"alliance.The company and jiangsu university jiontly set up the irrigation equipment research center,experimental base of fluiding engineering technology research center,the companay and china mining university joinly established the intelligent irrigation equipment research institube.Looking to the future,the company will cooperate



WORKSHOP SHOW

 farm water irrigation sprinkler system for agriculture

CERTIFICATIONS SHOW

 farm water irrigation sprinkler system for agriculturefarm water irrigation sprinkler system for agriculturefarm water irrigation sprinkler system for agriculture

Why Choose Us
We provide the best service for our clients all over the world !
1. Certificate: ISO: 90001; ISO14001; OHSAS18001
2. Accept the third party inspection company quality check;
3. Product qualification rate achieved 100%;
4. Match the international environmental protection policy; quality and delivery can be guaranteed;
5. Owning strong production ability;
6. Owning independent research and develop apartment and more than 100 professional service staff.
7. Small order are welcomed, MOQ 1PCS.
8. Provide quality assurance agreement.



FAQ
1. who are we?
We are based in Jiangsu, China, start from 2007,sell to Domestic Market(55.00%),Southeast Asia(15.00%),Africa(10.00%),South America(5.00%),South Asia(5.00%),Eastern Europe(4.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(2.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Sprinkler Machine,JP Series Of Coiling Sprinkler,CP Series Moving-Sprinkler Machine,Miro-Sprinkler,Drip Irrigation

4. why should you buy from us not from other suppliers?
The company owns a number of subsidiaries and branch companies,is a national high-tech enterprises,private technology enterprises in jiangsu province.The company take the science and technology achievements transformation projects of jiangsu province,credi

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese.



wholesale blueberry, papaya production irrigation system manufacturer, supplier, wholesaler, exporter, factory for sale



Alkaline water quality is one of the important factors restricting the development of blueberry. Blueberry production irrigation can improve the utilization rate of water and fertilizer.



How blueberries are regulated by irrigation water

In addition to soil conditions, the alkaline water quality is another factor restricting the development of blueberries. After cultivation experiments in the experimental demonstration area, three methods of water adjustment suitable for planting blueberries in areas with relatively alkaline water quality have been summarized, namely, the vinegar and liquid water adjustment method, the biogas slurry water adjustment method, and the bean dregs fermentation method. The specific method is to collect industrial and agricultural waste vinegar, biogas slurry or bean dregs and put them into the irrigation container. You can make a special storage tank or use a simple plastic bucket. After fermentation, add water to adjust to the suitable irrigation water pH for blueberries. That's it.



Irrigation uses drip irrigation with a dripper of 0.5 m. This method of water diversion and irrigation has solved the limitation of local alkaline water quality on blueberries and other acid-loving plants. Irrigation and watering are both water and fertilizer, which improves the efficiency of water and fertilizer use, is economical and practical, and reduces costs; at the same time, vinegar and bean dregs are used. Industrial wastes, such as biogas slurry, are introduced into the agricultural planting system to realize the recycling of wastes.



The main advantages of using drip irrigation for blueberries are

(1) Water saving and energy saving. Drip irrigation saves 30%-40% of water compared with surface furrow irrigation, thus saving energy consumption such as oil and electricity for pumping water.



(2) Drip irrigation basically does not affect the ground temperature. The dripper irrigation water volume is small, and it is not a one-time irrigation in a short time, so the direct impact on the ground temperature is small. Moreover, drip irrigation is to irrigate water in the underground root zone, and the amount of ground evaporation is small, which reduces soil evaporation heat consumption. Therefore, the ground temperature of drip irrigation blueberry gardens is generally higher than that of traditional ground irrigation, so the grapes grow faster and mature earlier. This is even more significant in facility cultivation.



(3) The damage to the soil structure is significantly reduced. Drip irrigation adopts the method of drip infiltration to supply water to the soil without causing damage to the soil structure.



(4) Reduced air humidity As ground evaporation is greatly reduced, the relative humidity of the air around the canopy of the vineyard is reduced by about 10% compared to ground irrigation, which greatly reduces the occurrence and spread of pests and diseases.



(5) It reduces the chance of spreading and re-infecting certain diseases that rely on irrigation water, especially root cancer.



(6) Drip irrigation combined with top dressing and pesticide application improves labor productivity. A facility fertilizer device is attached to the drip irrigation system to deliver fertilizer to the vicinity of the root zone along with the irrigation water, which not only saves fertilizer, but also improves fertilizer efficiency and saves fertilization labor. Some pesticides used for soil disinfection and applied from the roots can also be applied to the soil through drip irrigation, thereby saving labor costs and improving the effectiveness of pesticide application.



(7) Irrigation saves labor and effort. Drip irrigation is a semi-automatic mechanical irrigation method. The installed drip irrigation equipment can be irrigated by itself as long as the valve is turned on and the pressure is adjusted to the proper pressure.



In summary, compared to traditional above-ground irrigation, drip irrigation saves water, labor, labor, and money. It is beneficial to increase the ground temperature of blueberries and control the air humidity between blueberries, reduce the occurrence of diseases and insect pests, and promote the yield and quality of blueberries. Improved, the economic benefits are more obvious. In addition to blueberries, grapes, papaya and other orchards are also using this method.



If you are looking for such a nice blueberry, papaya production irrigation system, welcome to contact us via the ways on the bottom on this page.
